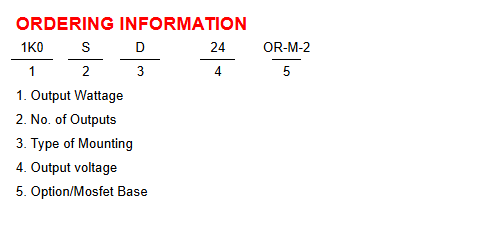

Home /1K0 S D 24 OR-M-2
| Vibration | 10 - 55Hz, 19.6m/s² (2G) |
| Safety Standards | Design conforms to UL60950-1 |
| Surge | EN61000-4-5 |
| ESD | 15KV Air discharge, 8KV contact discharge |
| Emitted RF Interference | EN 55011 (EN55022) Class-B |

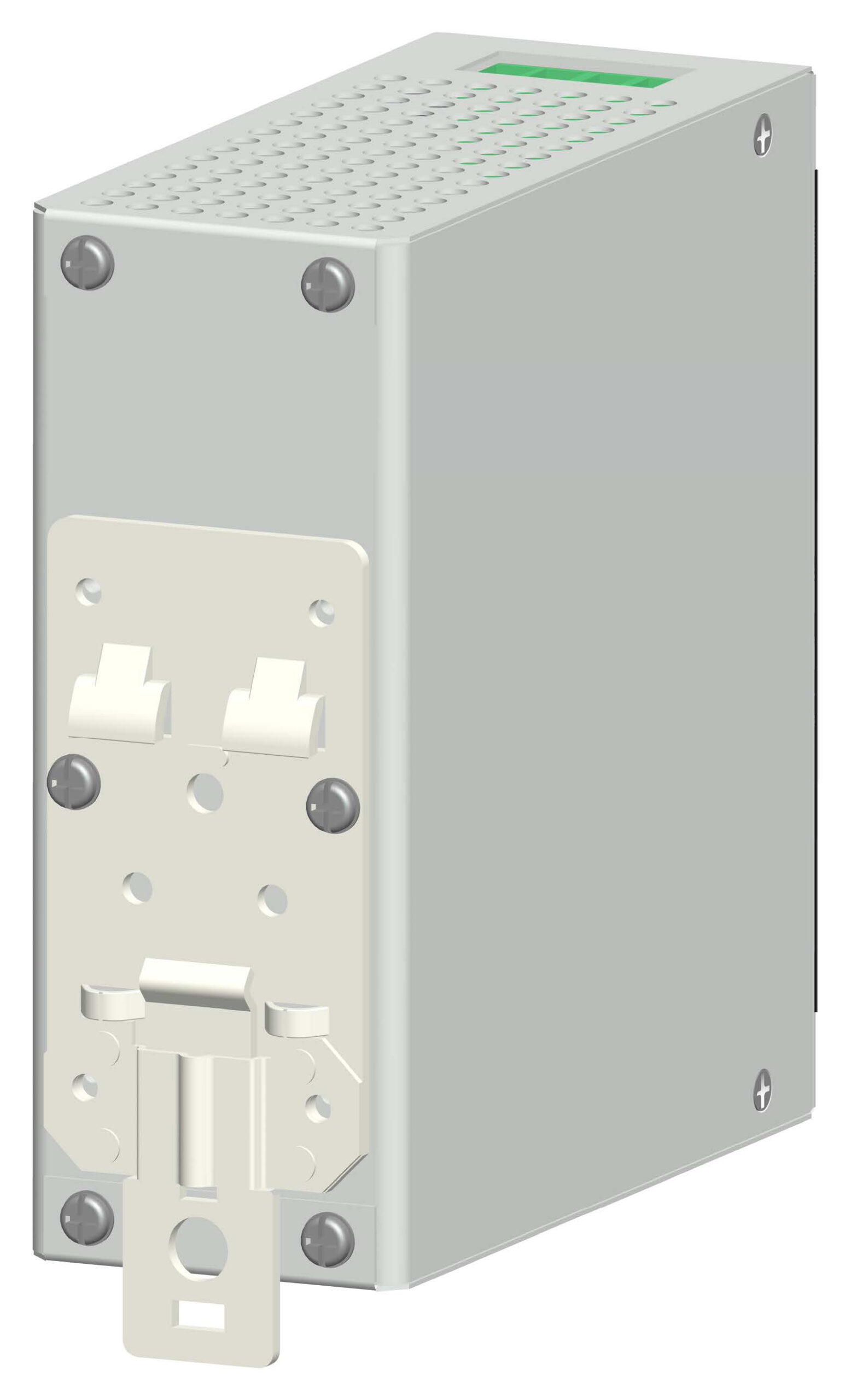

| Mounting | Din-Rail Mounting |

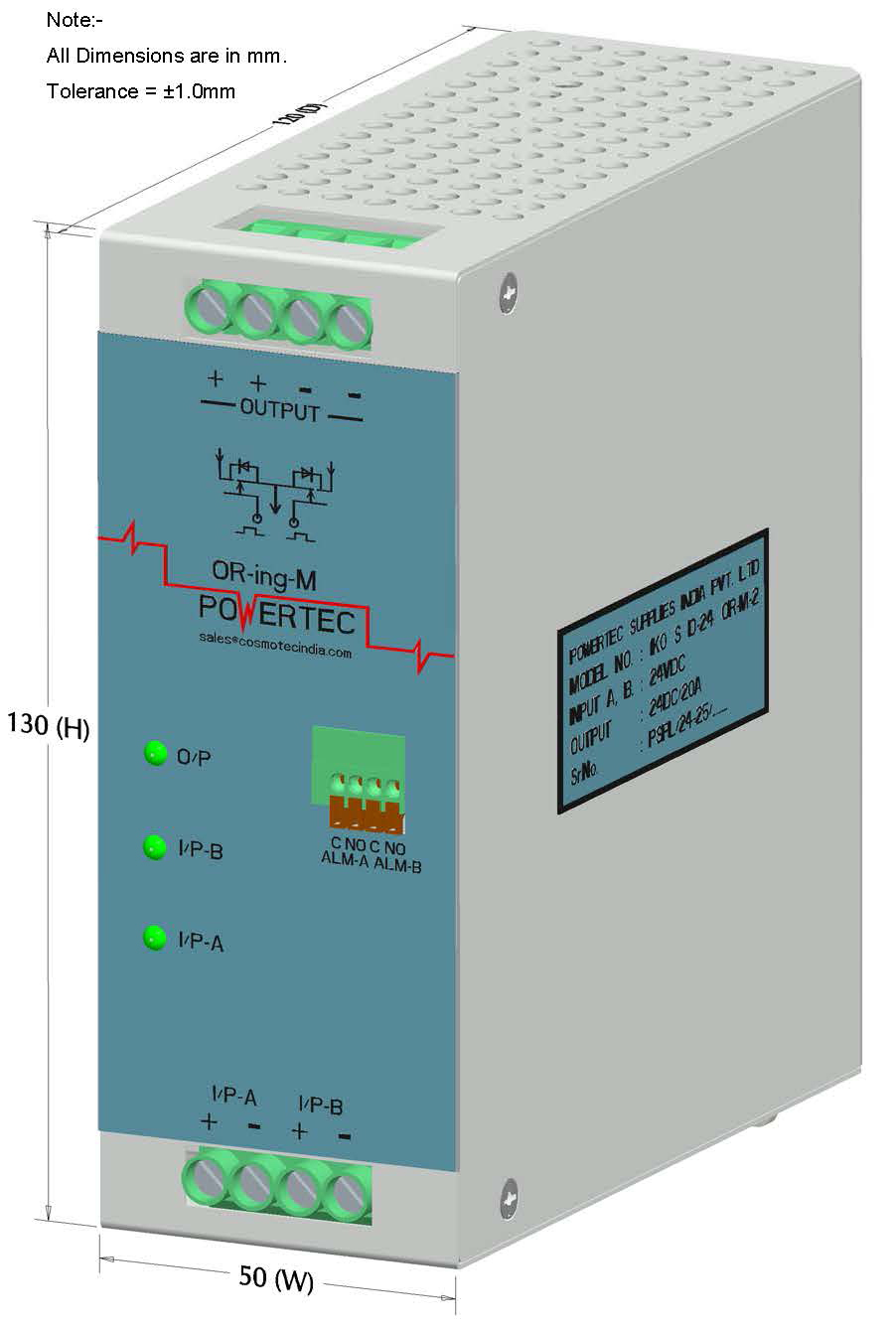

| Depth | 120mm |
| Width | 45mm |
| Height | 130mm |
| Material |
Aluminium Chassis (Environment protected) Ventilated cover 35mm DIN clamp MS |
| Weight (Unpacked) | 0.45Kg |
| Input A Voltage | 24.0 VDC |
| Input B Voltage | 24.0 VDC |
| Voltage Range | 20-30 VDC |
| Current | 20A (each input) |
| Isolation | Input-Output: Positive Side Input-Case: 500V Output-Case: 500V |
| Leakage Current | 100mA max. |
| Output Voltage | 24.0VDC (as per input range) |
| Output Current | 20A at Redundant / 40A at Power Share |
| Power | 1KW max |
| Input to Output Voltage Drop | <250mV @ Iout 20A |
| Power Loss | 10W max (Iout = 20A) 20W max (Iout = 40A) |

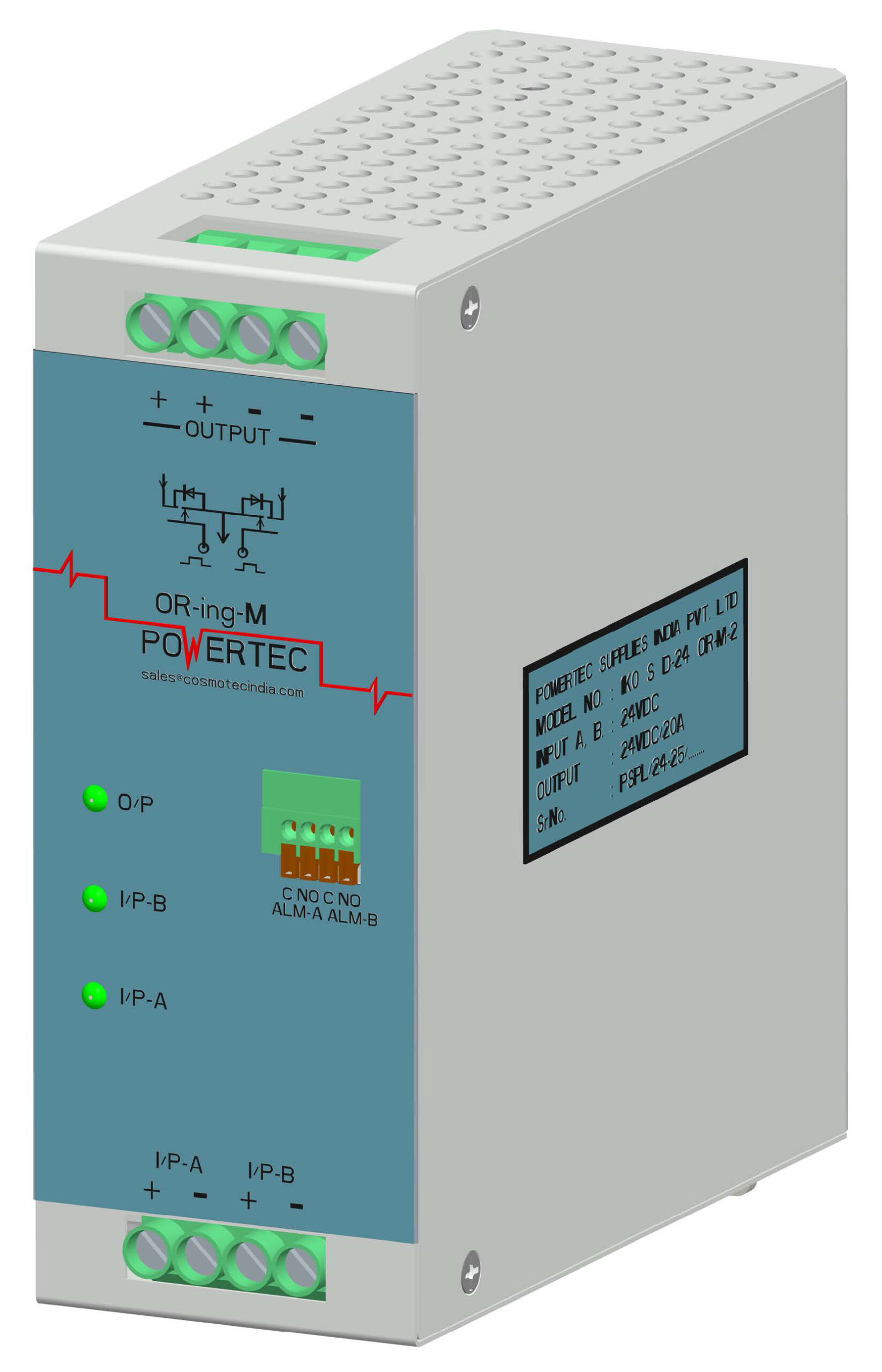

| LED Indications | Input A, Input B & Output (All are Green) |
| Response Time | 50ns |
| Input Reverse Polarity | Protected < 45VDC |
| Efficiency | >97±1% at full load |
| Power Good Contact |
DC input OK provided for Health C, NO Normally close. Input fault/unavailable: C, NO open. Contact current: 5A |
| Input | Screw Terminals (20A rated), Single + & - terminal |
| Output | Screw Terminals (20A rated), Dual fan out + + & - - terminal |
| Power Good / PFC | Screwless lock type, 5A rated, C, NO for Input-A & Input-B |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 20-95% RH (Non-condensing) |
| Cooling | Convection Cooling |
| Degree of Protection | IP20 |
| Class of Protection | CLASS III |
