Home / 450 S D-30 ORD1
| PFC Contact | Provided for Input - Input Fail C, No contact close for ok. Contact C, No open for abnormal |
| Contact rating | 5A @ 230VAC |
| Operating Temperature | -20°C to +70°C |
| Relative Humidity | 20-90% RH (Non condensing) |
| Cooling | Convection Cooling |
| Input | |
|---|---|
| Voltage | 30.0VDC |
| Current | 0-10A |
| Isolation |
Input-Output: Positive Side Input-Case: 3000VAC Output-Case: 500VAC |
| Leakage Current | 100mA max. |
| Output | |
|---|---|
| Voltage | 30.0VDC |
| Current | 0-10A Peak 15A |
| Power | 300W max (Redundant mode) |
| Line Regulation | 1% of Vnom |
| Load Regulation | 1% of Vnom (Oring drop 500mV Exclusive) |
| LED Indications | Input & Output green |
| Response up time | 50ns |
| Input Reverse Polarity | Protected |
| Efficiency | >97% at full load |
| Vibration | 10 - 55Hz, 19.6m/s² (2G) |
| Safety Standards | Design conforms to UL60950-1 |
| Mounting | Din-Rail Mounting |
| Connectors | Screw Terminals |

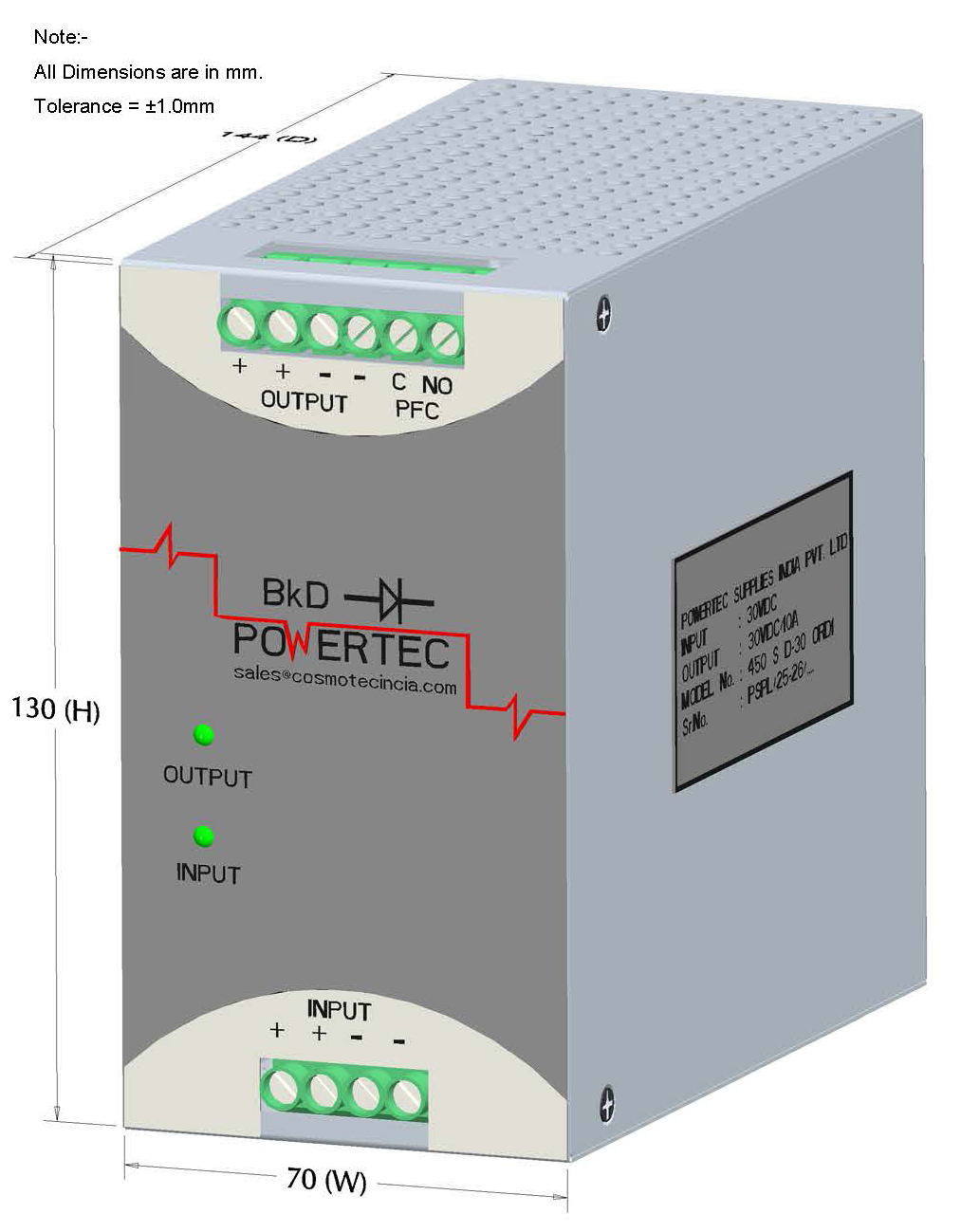

| Depth | 150mm (Include Din clamp) |
| Width | 70mm |
| Height | 130mm |
| Weight | 0.5 Kg (unpacked) |
