4K0-S-D-48-ORD-2

Home /4K0-S-D-48-ORD-2

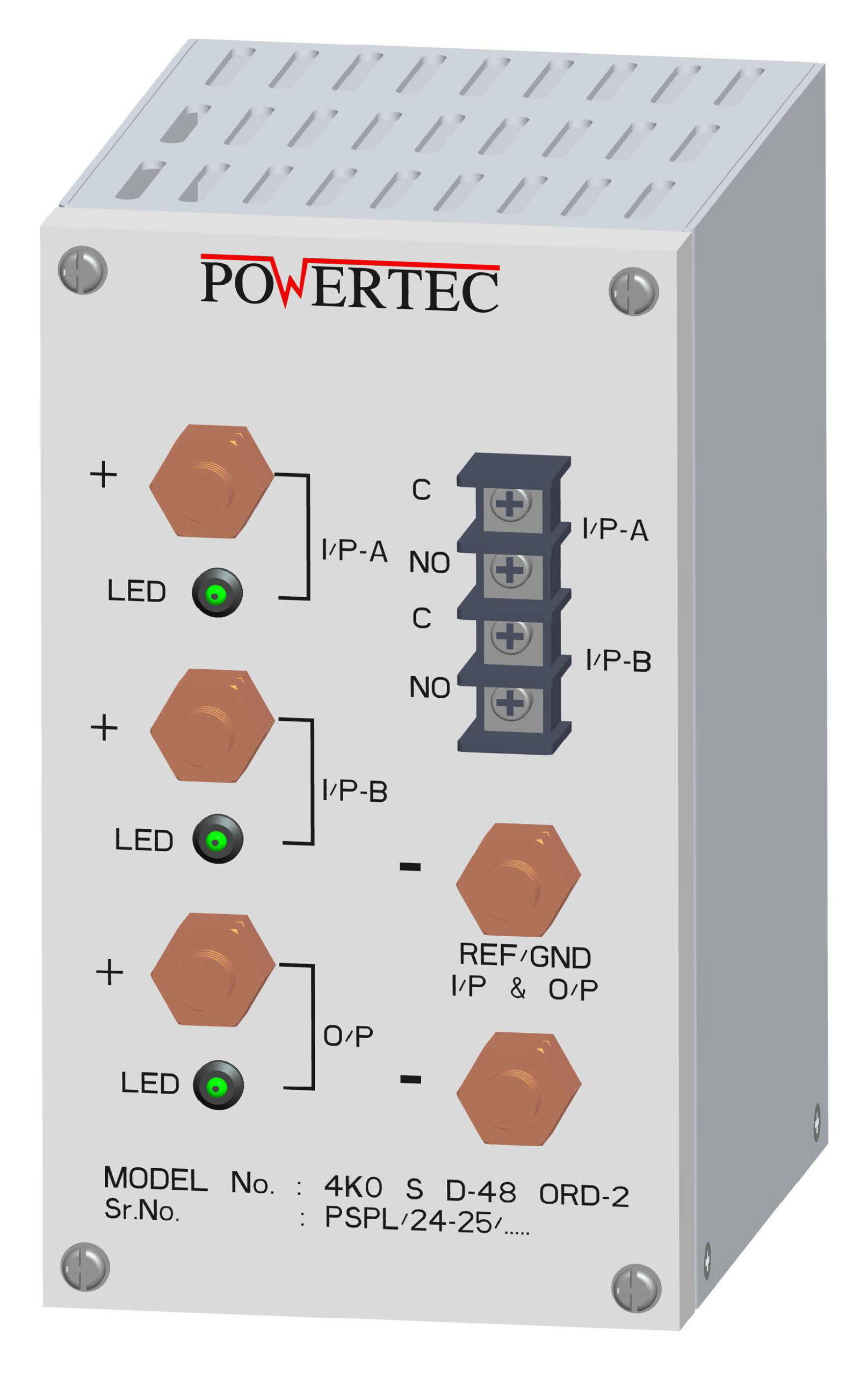

PSPL_4K0 S D-48 ORD-2 40A_3D_01_Front View_Without Dimensions_000

PSPL_4K0 S D-48 ORD-2_3D_01_Front View_With Dimensions_000

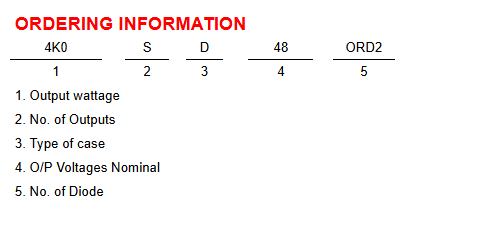

Model:4K0-S-D-48-ORD-2

Features

Input & output isolation on positive
Back plate mounting
Over-temp / reverse input voltage protected
Compact & reliable converter

Design Conformance

Vibration	10 - 55Hz, 19.6m/s² (2G)
Safety Standards	Design conforms to UL60950-1

Mechanical

Mounting	Back plate mounting (Din Rail Mounting hole – see page 2)
Width	90mm
Depth	60mm (without Brass Terminal)
Height	130mm
Weight (Unpacked)	2.5Kg Approx.

Input Specifications

Input A Voltage	48VDC ±10%
Input B Voltage	48VDC ±10%
Input Current	40A max.
Leakage Current	200mA max.
Isolation	Input-Output: Positive Side Input-Case: 2000VAC Output-Case: 500VAC

Output Specifications

Output Voltage

48VDC ±10%

Output Current

40A (1920W) max (Red

Connectors

Input and Output	M-6 Brass nut bolt
PFC	Screw Terminal

Environmental

Operating Temperature	-20°C to +85°C
Storage Temperature	-40°C to +100°C
Relative Humidity	20-90% RH (Non-condensing)
Altitude	3000m (10,000 feet) max
Vibration	19.6m/s² 10-55Hz, 3 min period, 60 min each along X, Y & Z axis
Cooling	Convection
