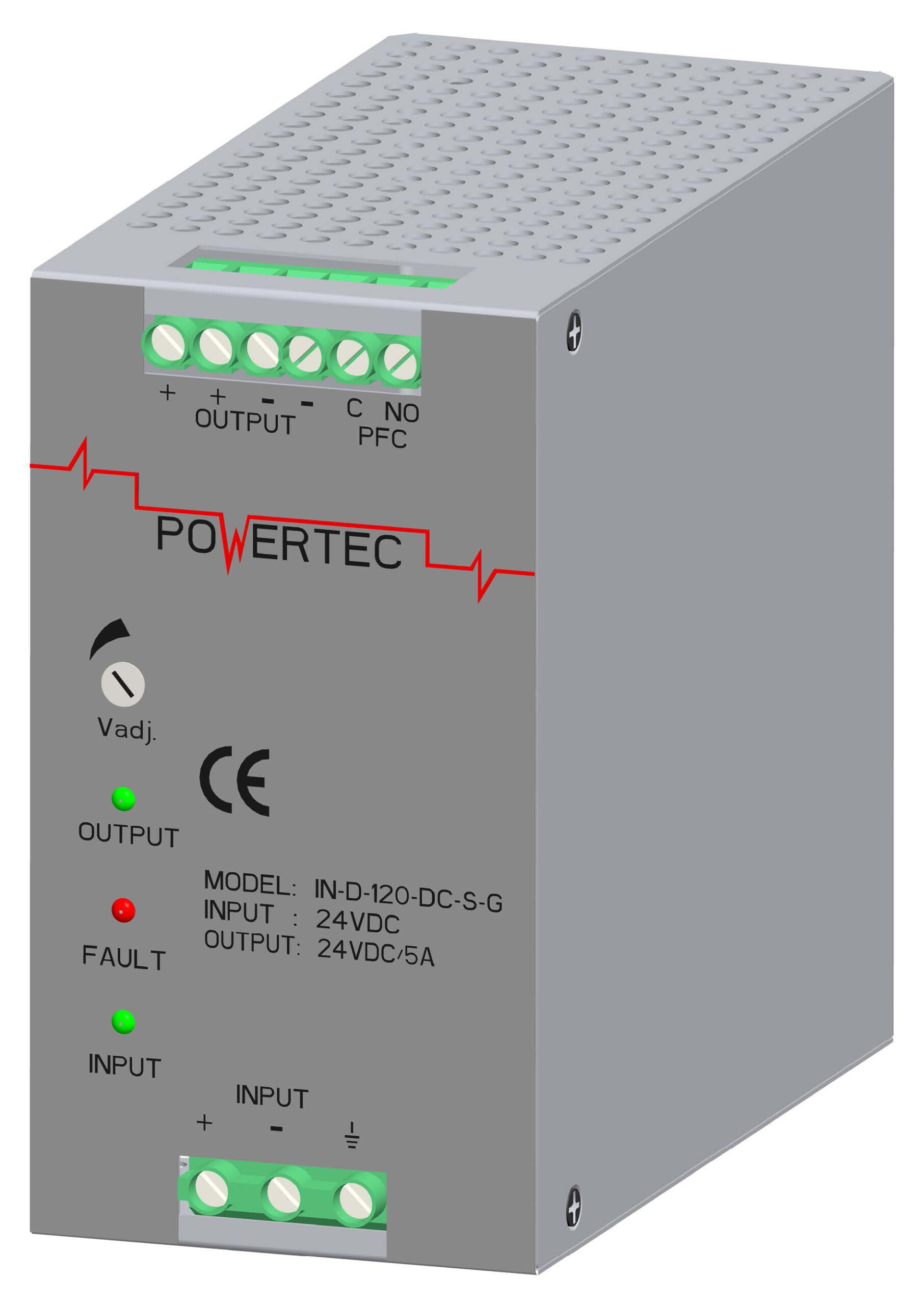

Model:IN-D-120-DC-S-G​

120W DC/DC Converter

 Features
• Natural Convection Cooling.
• 24VDC Input / 24VDC Output.
• Input transients & reverse polarity protection.
• Rugged DC / DC Converter for Industrial applications.
• Over-voltage / short-circuit / Over-current / Over-temp. protected.
Environmental
Operating Temperature-20°C to +60°C (derating >75°C)
Storage Temperature-40°C to +100°C
Relative Humidity20–90% RH (Non-Condensing)
CoolingNatural Convection
Mechanical
MountingBack plane / DIN-Rail
EnclosureIP42 Cabinet

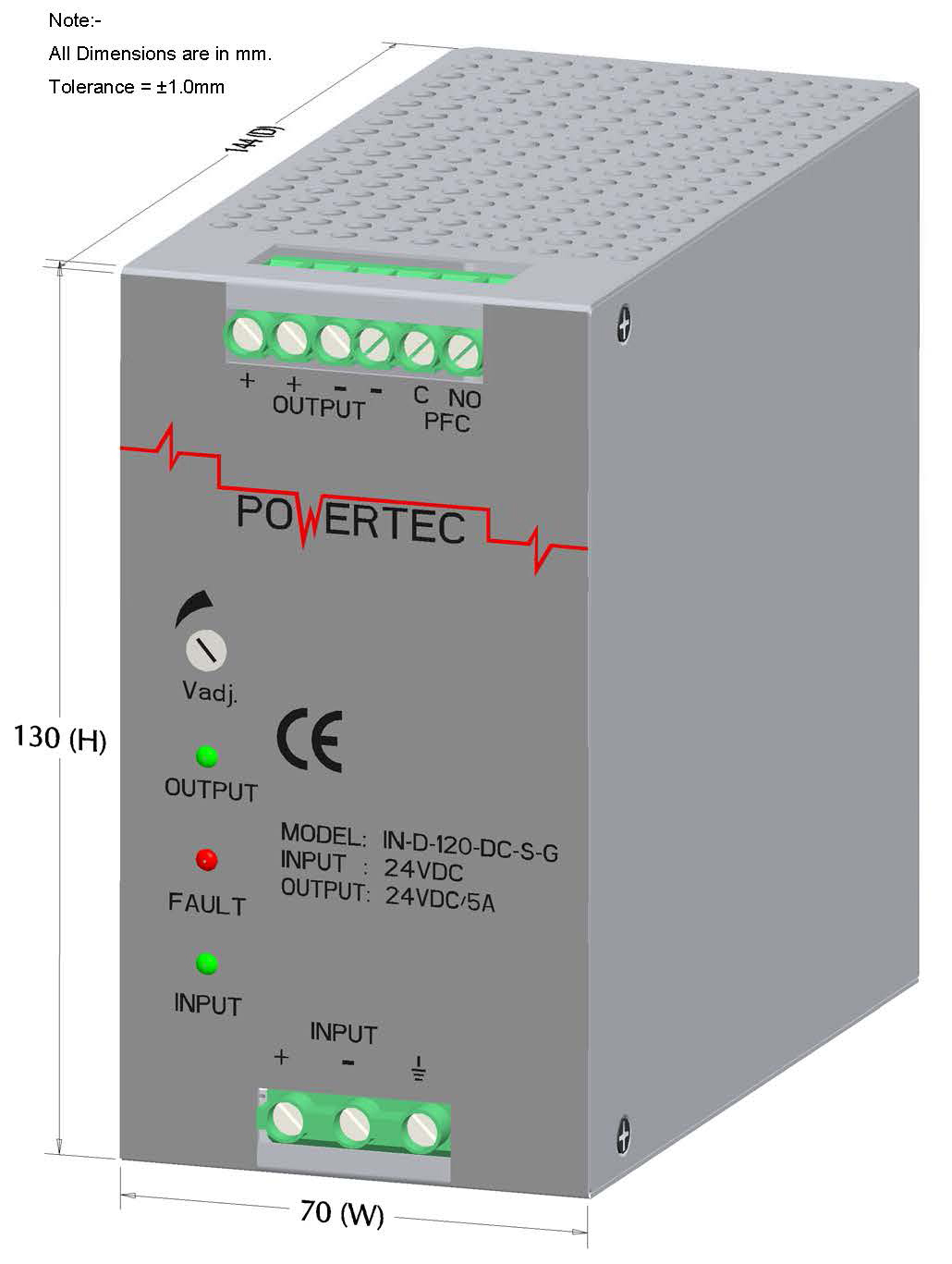

DimensionsDepth: 144mm
Width: 70mm
Height: 130mm
Weight<1.2Kg Approx.

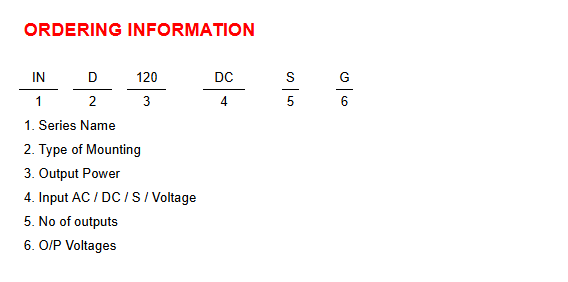

DC-DC Converter - IN-D-120-DC-S-G
Specifications
Input
Voltage24VDC (18–36VDC)
Current8.5A at 24VDC
Isolation Input-Case: 500VDC, 30MΩ
Input-Output: 500VDC, 30MΩ
Output-Case: 500VDC, 30MΩ
ProtectionReverse polarity and over-current via fuse
Inrush Current<15A typical
Switch On Delay<100mSec
Output
Voltage24VDC (±1%)
Current5.0A
Power120W
Ripple150mVp-p (20MHz bandwidth)
Ripple Noise120mVp-p
Line Regulation≤1% of Vnom
Load Regulation≤1% of Vnom (Exclusive OR-ing drop max 0.5VDC)
LED IndicationsDC Input, Output OK (Green), DC Low/Fault (Red)
Output Voltage Adjustment22V to 26VDC
ProtectionOverload, short-circuit (auto recovery)
Relay ContactC, Normally short for OK, open for fault
OR-ing DiodeInbuilt for redundancy and power sharing
Efficiency>87% from 10% to 100% load (excluding diode losses)
Standards (Conformance)
SafetyUL60950-1 (Conformance)
Vibration10–55Hz, 19.8m/s² (2G)
Switching Frequency370KHz
