| Environmental | |
|---|---|
| Operating Temperature | -20°C to +60°C (Derating >75°C) |
| Storage Temperature | -40°C to +100°C |
| Relative Humidity | 20–90% RH (Non-condensing) |
| Cooling | Natural convection |
| Mechanical | |
|---|---|
| Mounting | Back plane / DIN Rail |
| Enclosure | Cabinet IP42 |

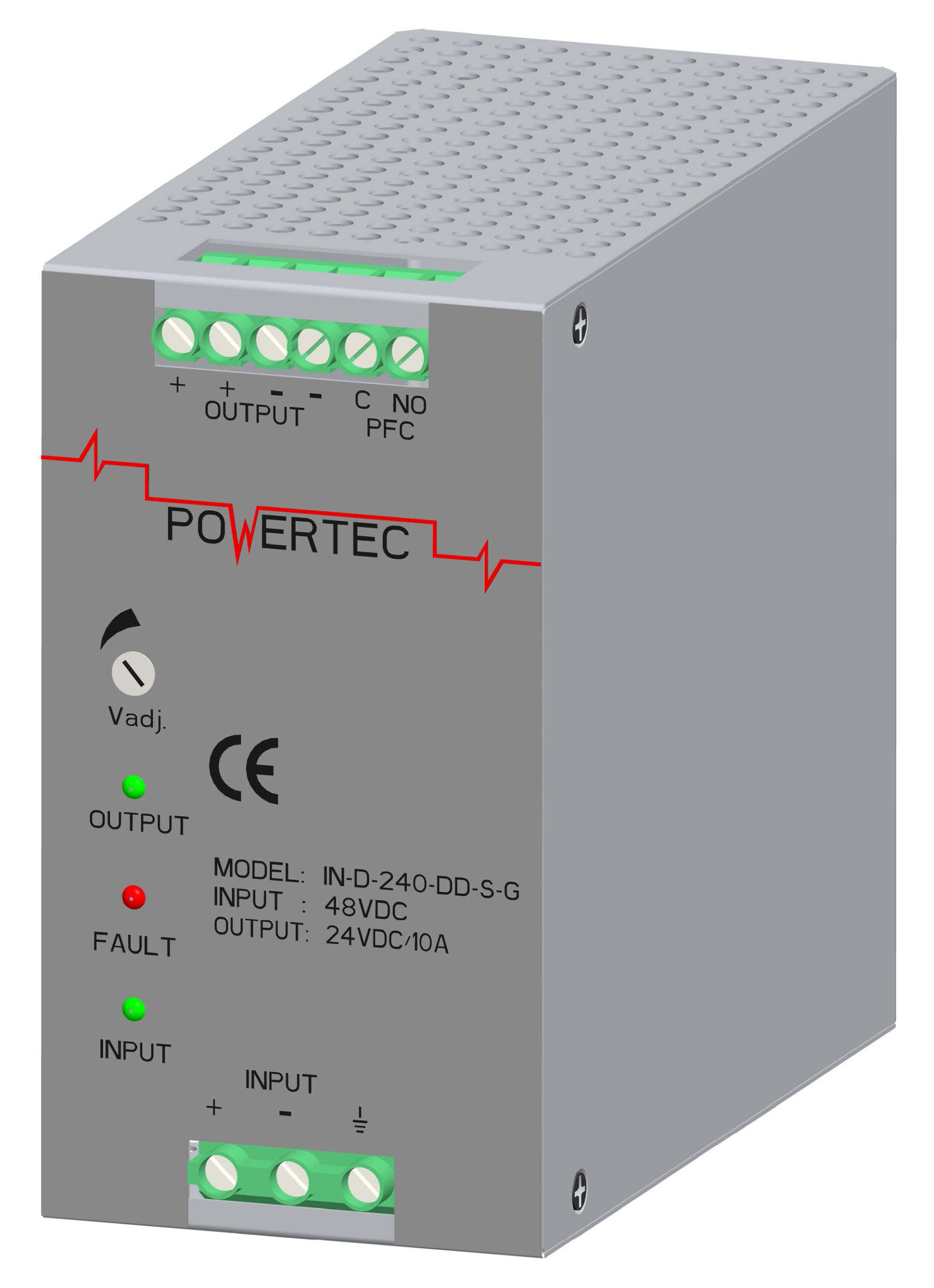

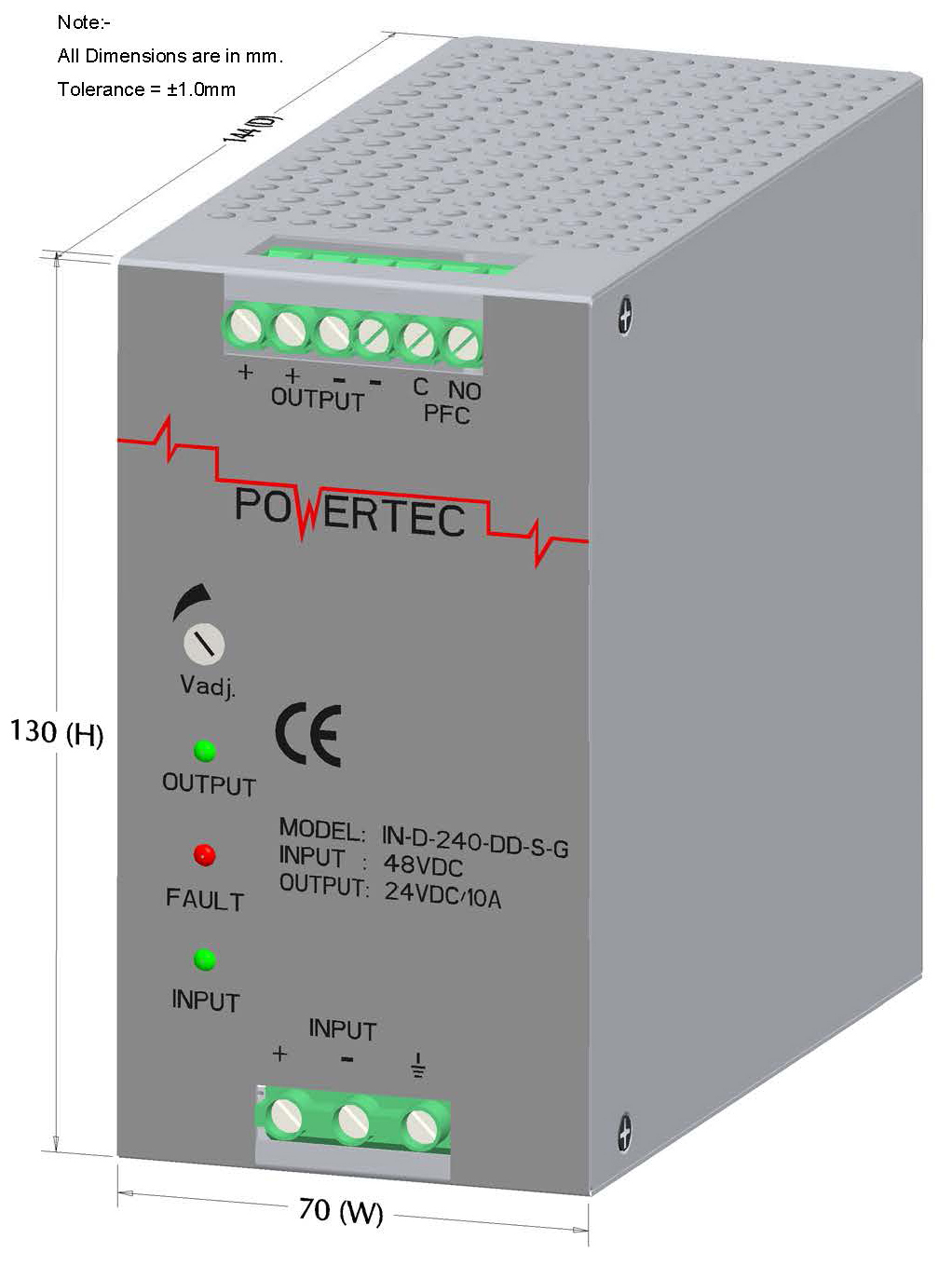

| Dimensions | 70mm × 130mm × 144mm (W × H × D) |
| Weight | <1.2Kg (approx.) |
| Connectors | Screw terminals |
| Input | |
|---|---|
| Voltage | 48VDC (36V–76V) |
| Current | 8.5A at 48VDC |
| Isolation | Input-Case: 500VDC, 30MΩ Input-Output: 500VDC, 30MΩ Output-Case: 500VDC, 30MΩ |
| Protection | Reverse polarity and over-current via input fuse |
| Inrush Current | <15A typical |
| Switch On Delay | <100mSec |
| Output | |
|---|---|
| Voltage | 24VDC (±1%) |
| Current | 10.0A |
| Power | 240W |
| Ripple | 150mVp-p (20MHz bandwidth) |
| Ripple Noise | 120mVp-p |
| Line Regulation | ≤1% of Vnom |
| Load Regulation | ≤1% of Vnom (Exclusive OR-ing drop max 0.5VDC) |
| LED Indications | DC Input (Green), DC OK (Green), DC Low/Fault (Red) |
| Voltage Adjustment | 22V to 26VDC |
| Protection | Overload, short-circuit (auto recovery) |
| Relay Contact | Provided. C, Normally short for OK, open for not OK |
| OR-ing Diode | Inbuilt for redundancy and parallel operation |
| Efficiency | >87% from 10% to 100% load (excluding diode losses) |
| Standards | |
|---|---|
| Vibration | 10 - 55Hz, 19.8m/s² (2G) |
| Safety Standards | UL60950-1 conformant |
| Switching Frequency | 370KHz |
| Ordering Information | |
|---|---|
| Part Number | IN-D-240-DD-S-G |
| Legend |

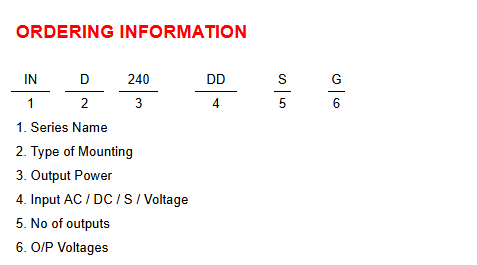

1. Series Name 2. Type of Mounting 3. Output Power 4. Input Type 5. Number of Outputs 6. Output Voltage |
