IN-R-9K0-DF-S-M

Home / IN-R-9K0-DF-S-M

Model: IN-R-9K0-DF-S-M

8800W AC/DC Single Output

 Features
  • 220VAC Input / 220VAC Output.
  • Rugged AC/DC Converter for Industrial applications.
  • Surge, Burst, Fast transients & Lightning protection.
  • Over-voltage / Short-circuit / Over-current protected.
IN-R-9K0-DF-S-M Specifications
Input Specifications
Voltage220VDC / VDC (200 - 400V) 1Ø, 50Hz
Current51.5A Max.
Isolation Input-Output: 500VDC, 10MΩ
Input-Case: 500VDC, 10MΩ
Output-Case: 500VDC, 10MΩ
ProtectionsSurge, Burst, Lightning & Fast Transients.
Environmental
Operating Temperature-10°C to +65°C
Relative Humidity20-90% RH (Non-Condensing)
CoolingForced Air Cooling (Internal). Air flow front to rear side
IN-R-9K0-DF-S-M Specifications
Output Specifications
Voltage220±1VDC
Current40.0Amp
Power8800W
Ripple & Noise1% of Vnom.
Line Regulation1% of Vnom.
Load Regulation1% of Vnom.

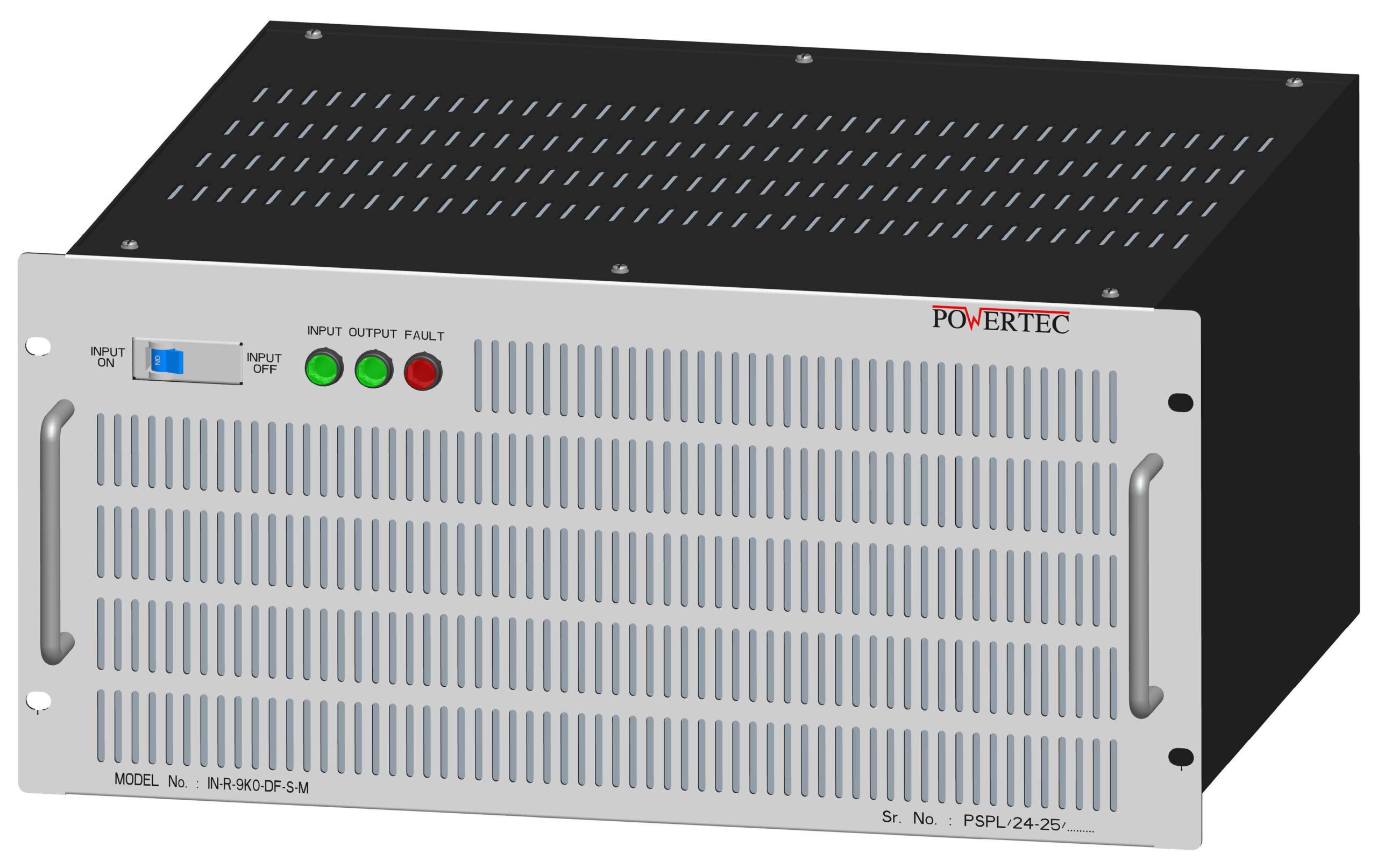

LED IndicationsInput, Output and Fault
PFC ContactProvided NC, C & NO
Protections Over-voltage / Over-current / Short-circuit: Protected
Efficiency>84% (Exclusive OR-ing Diode power dissipation)
IN-R-9K0-DF-S-M Specifications

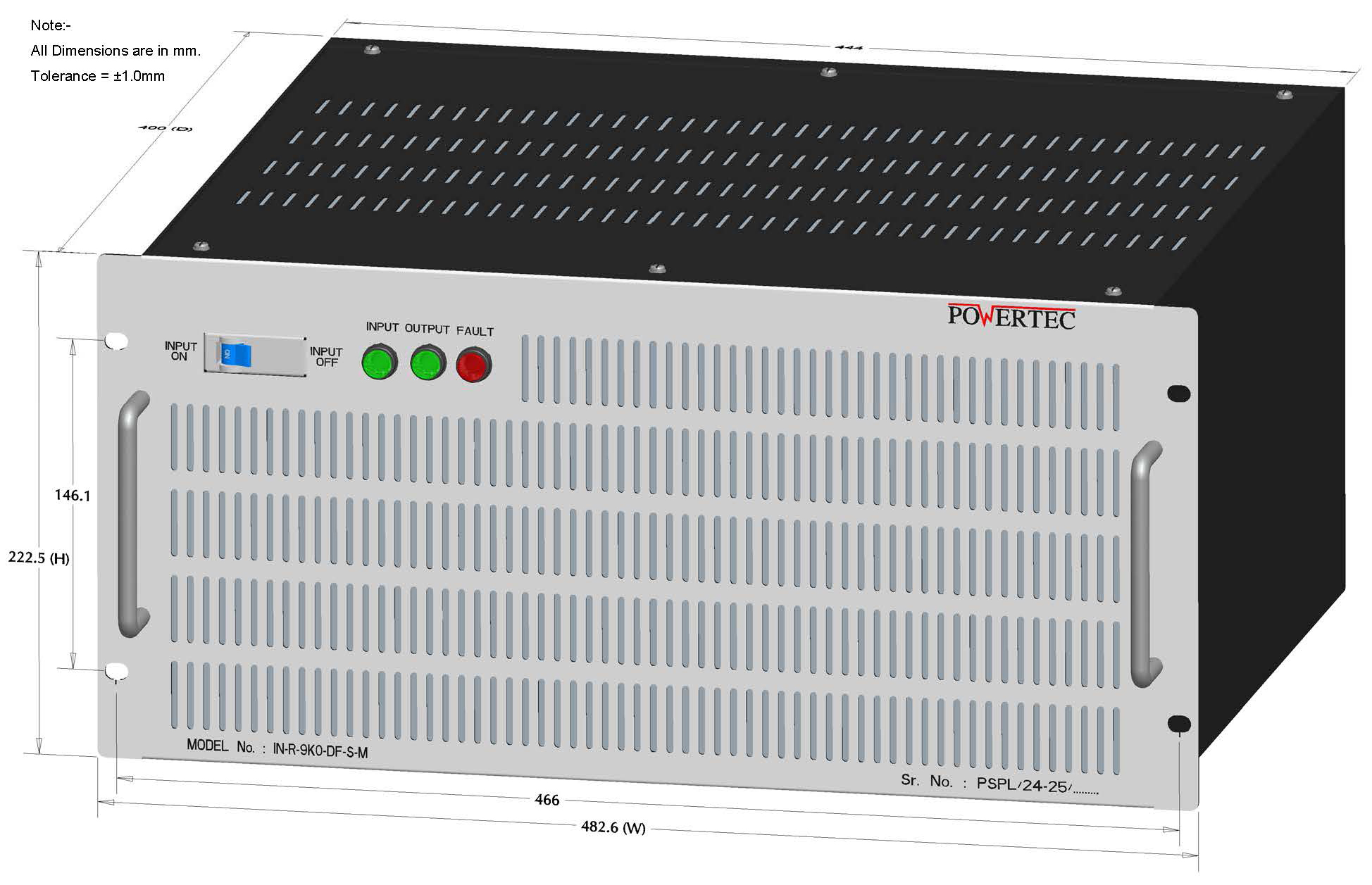

Mechanical
MountingRack Mounting type (19")

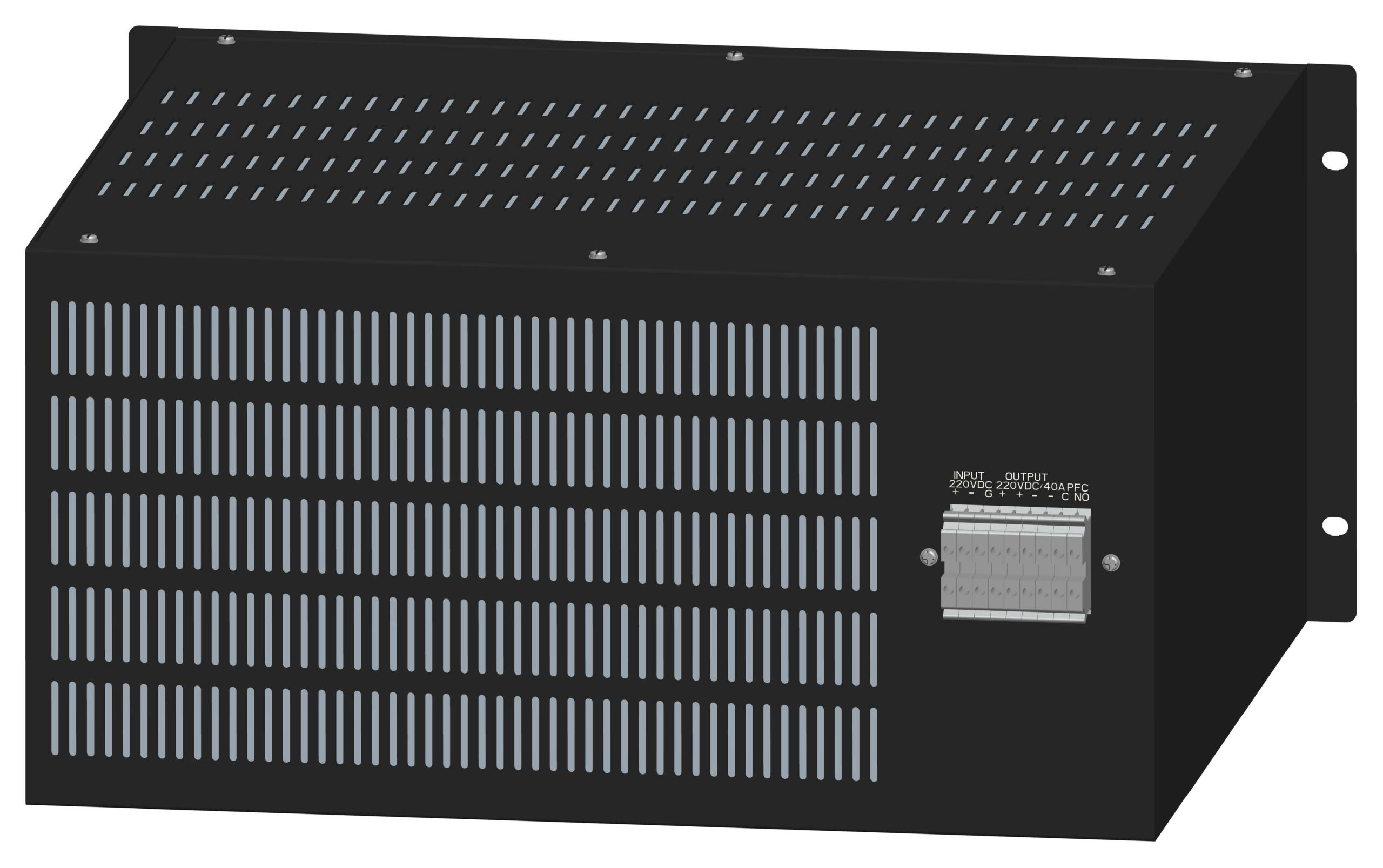

ConnectorsScrew Terminals for I/P, O/P & PFC
Depth400mm
Width482.6mm
Height222.5mm
Weight20Kg Approx.
Standards (Conformance)
Vibration10 - 55Hz, 19.6m/s² (2G)
Safety StandardsConformance to UL60950-1 Std.
