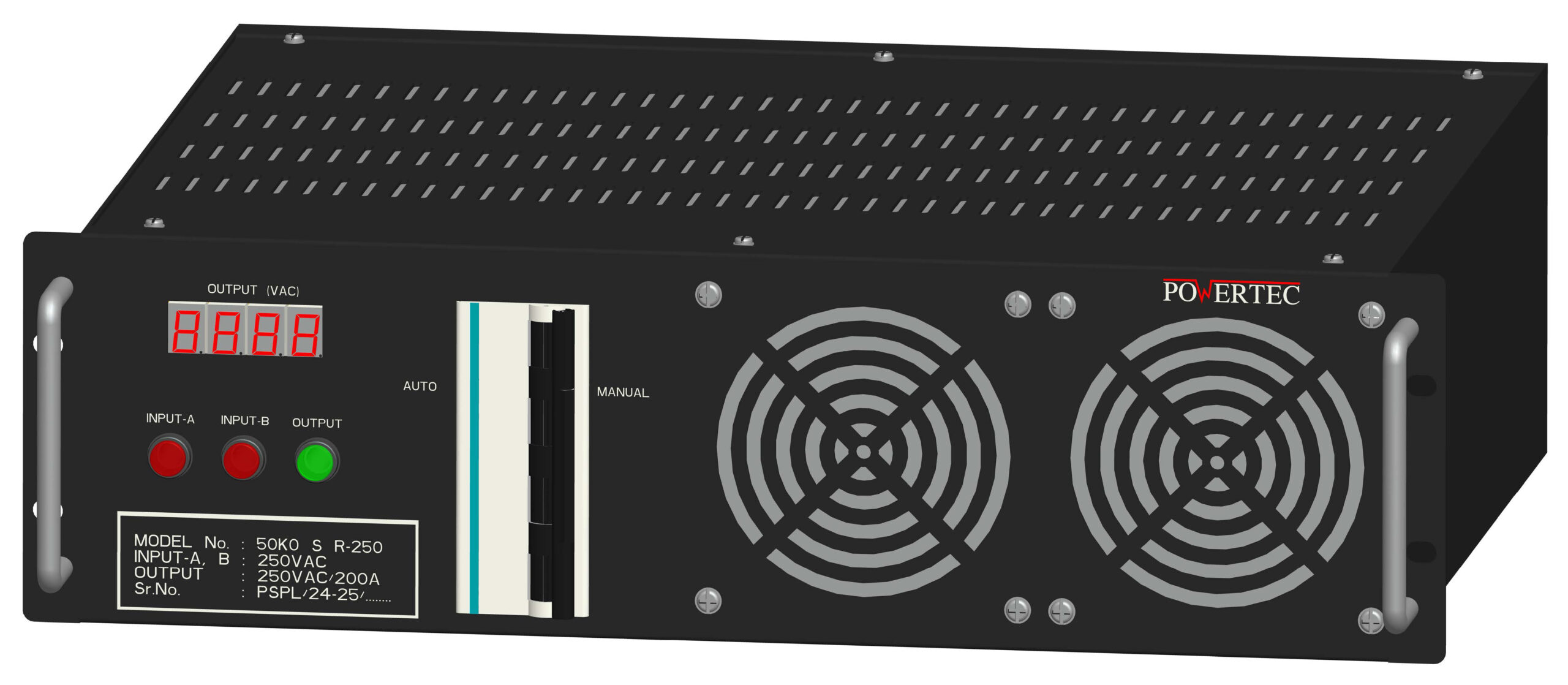

Home / PAC 50K0 S R-250
| Input (Dual) | Input-A & Input-B |
| Voltage | 200V-250VAC |
| Current | 200A approx. from Input-A / Input-B |
| Frequency Range | 47 to 63Hz |
| Priority Source | Input-A |
| Typical Transfer Time | <8ms |
| Output | As per Input (200V-250VAC, 200A) |
| Capacity in KVA | 50000VA Max. |
| Switching Technology | Thyristor based switching |
| Load Regulation | <2% from no load to full load |
| Power Efficiency | >95% |
| Output Wire Gauge | 30 sq.mm (Max.) |
| LED Indications | Red LED for Load status A / B & Green for Output |
| Display | DPM for Output VAC |
| Auto/Manual | MCB for changing Status of source Auto / Manual |
| Operating Temperature | -10°C to 65°C |
| Storage Temperature | -20°C to 85°C |
| Relative Humidity | 10-90% RH (Non-Condensing) |
| Cooling | Forced Air (Internal Fan) |
| MTBF | 50000Hrs |
| Mounting | 19" Mounting / Table-Top |

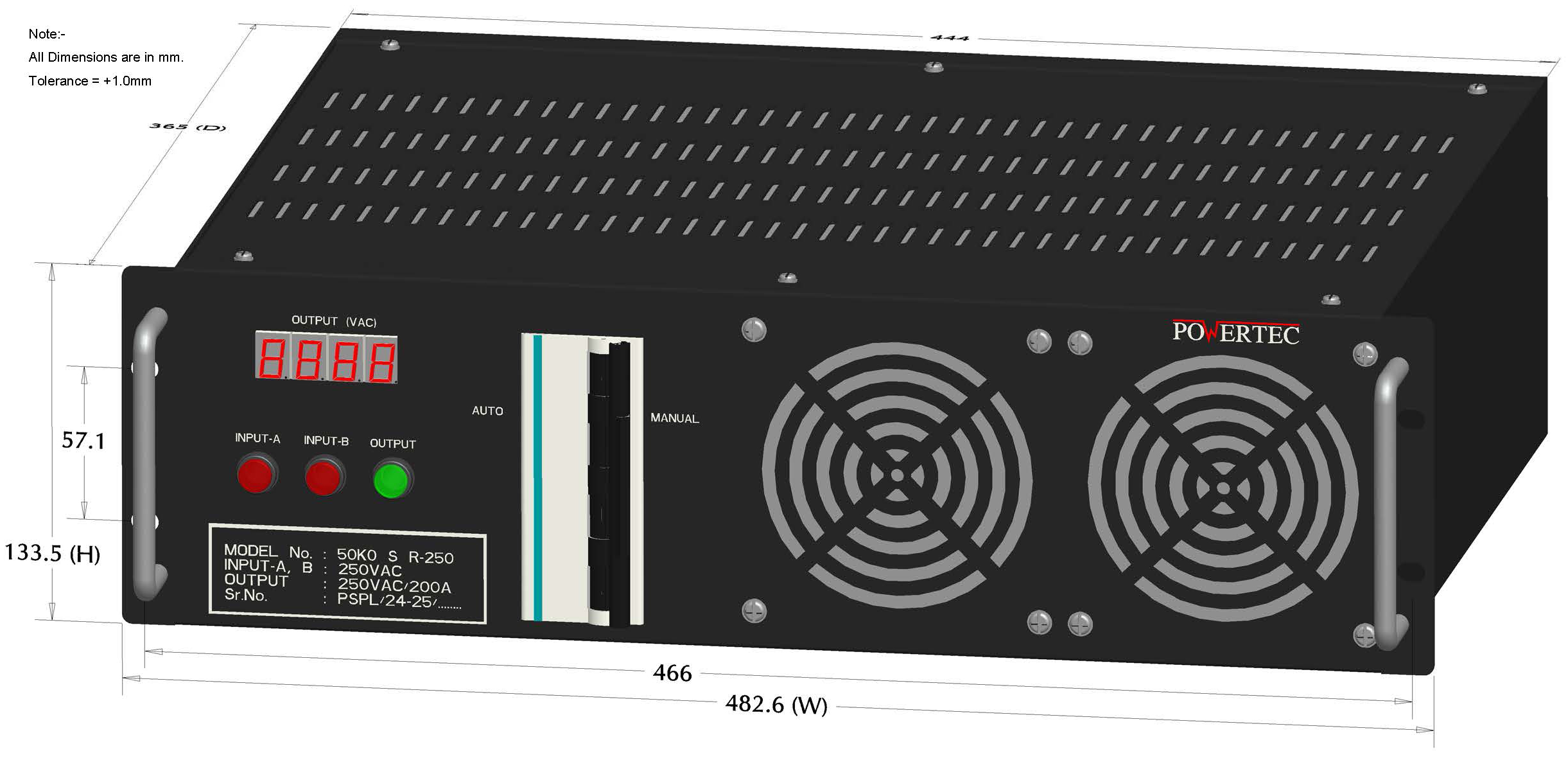

| Depth | 365mm |
| Width | 482.6mm |
| Height | 133.5mm |
| Weight (unpacked) | <12.5Kg Approx. |
| Connector | Input-A, B : Cu Bus Bar | Output : Cu Bus Bar |
| Input/Output Wire Size | 30 sq.mm (Max.) |
Ordering Information:
PAC 50K0 S R 250
