| Voltage | 48VDC (36V-76V) |
|---|---|
| Current | 65A at Nominal Input 48VDC |
| Isolation |
Input-Case: 500VDC, 30MΩ Input-Output: 500VDC, 30MΩ Output-Case: 500VDC, 30MΩ |
| I/P Protection | Input reverse polarity and over-current by input fuse |
| Inrush Current | <75A typical |
| Switch On Delay | <100mSec |
| Voltage | 48VDC (Tolerance ±1%) |
|---|---|
| Current | 40.0A |
| Power | 1920W |
| Ripple (mVp-p) | 450 max. (20 MHz bandwidth) |
| Ripple Noise | 450 max. |
| Line Regulation | ≤1% of Vnom |
| Load Regulation | ≤1% of Vnom (OR-ing drop max 0.6VDC) |
| LED Indications | DC I/P, O/P OK (Green), DC Low/Fault (Red) |
| Voltage Adjustment | 22 - 26VDC (Factory set; confirm with P.O.) |
| Output Protection | Overload, short-circuit with auto-recovery |
| Relay Contact | Provided (C, No-contact short OK, Open not OK) |
| Derating | >85°C |
| OR-ing Diode | Inbuilt for redundancy and parallel operation |
| Efficiency | >87% (10% to 100% load) |
| Operating Temp. | -20°C to +60°C (Derating >75°C) |
|---|---|
| Storage Temp. | -40°C to +100°C |
| Humidity | 20-90% RH (Non-condensing) |
| Cooling | Convection Cooling |
| Vibration | 10 - 55Hz, 19.8m/s² (2G) |
|---|---|
| Safety | UL60950-1 Conformance |
| Switching Frequency | 370KHz |
| Mounting | Back Plane / DIN Rail |
| Enclosure | Cabinet IP42 |

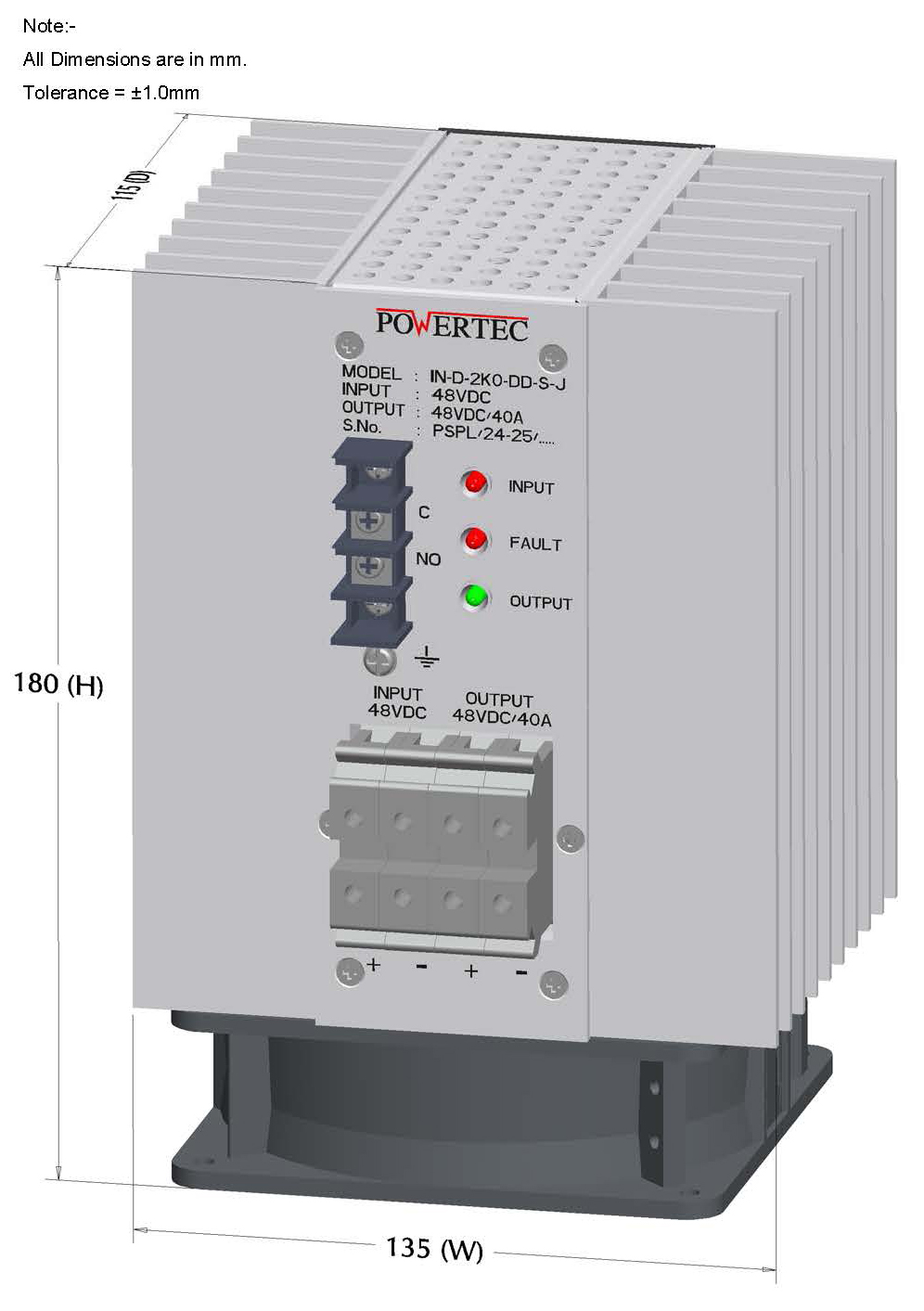

| Depth | 115mm |
| Width | 135mm |
| Height | 180mm |
| Weight | <2.5Kg (Approx) |
| Connectors | Screw Terminals |
